Gree Commercial Central Air Conditioning VRF Sales, Installation and Construction
Professional Commercial Air Conditioning Solution
US$3,566 starting price
Minimum Order
1
Product Features
- Ultra Heat GMV Heat Recovery DC Inverter VRF 72K
- Specification are subject to change without notice.

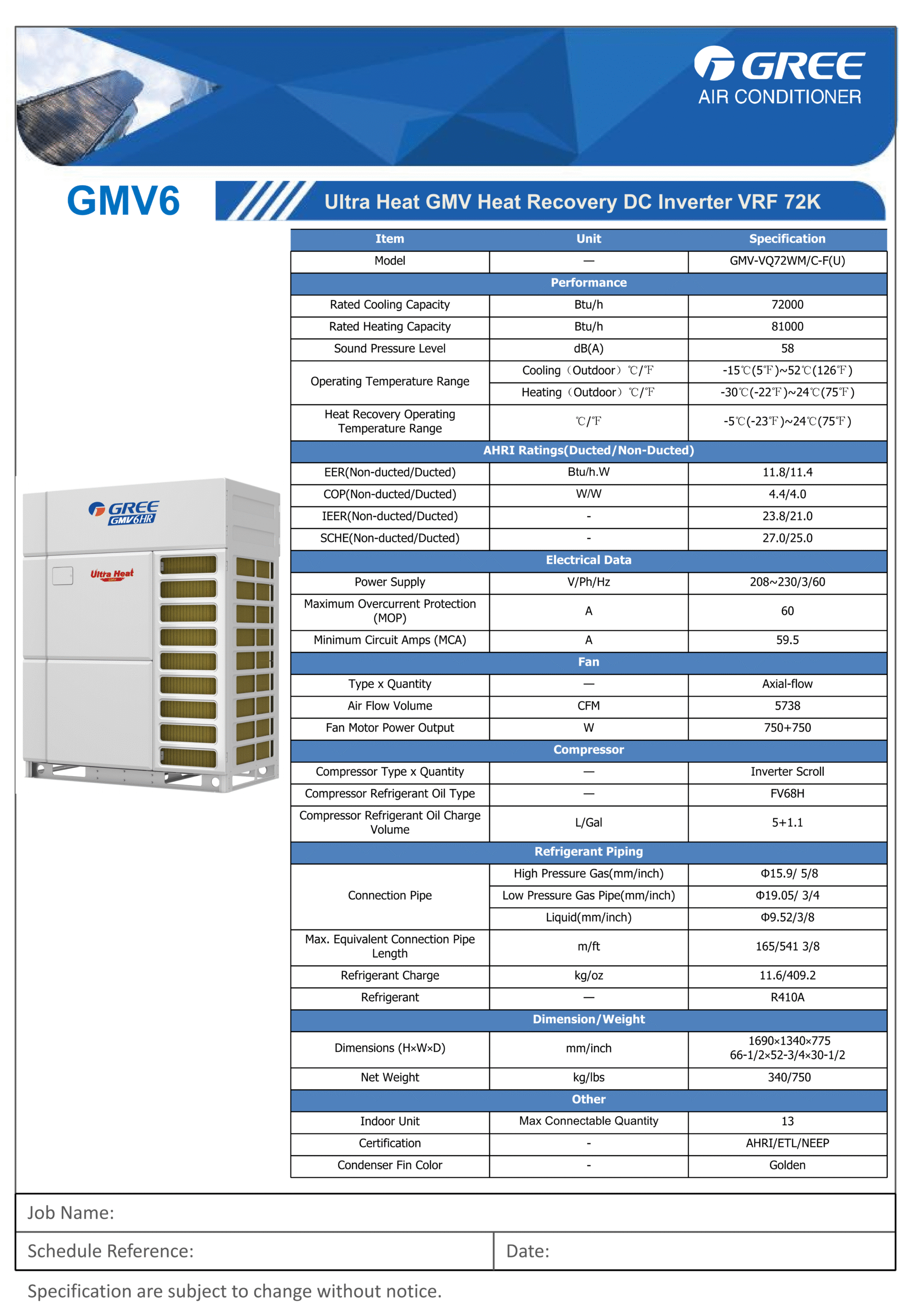

Technical Specifications
Model
GMV-VQ72WM/C-F(U)
Rated Cooling Capacity
72000Btu/h
Rated Heating Capacity
81000Btu/h
Operating Temperature Range Cooling（Outdoor）℃/℉
-15℃(5℉)~52℃(126℉)
Operating Temperature Range Heating（Outdoor）℃/℉
-30℃(-22℉)~24℃(75℉)
Heat Recovery Operating Temperature Range
-5℃(-23℉)~24℃(75℉)℃/℉
AHRI Ratings(Ducted/Non-Ducted)
As follows
EER(Non-ducted/Ducted)
11.8/11.4Btu/h.W
COP(Non-ducted/Ducted)
4.4/4.0W/W
IEER(Non-ducted/Ducted)
23.8/21.0
SCHE(Non-ducted/Ducted)
27.0/25.0
Electrical Data
As follows
Power Supply
208~230/3/60V/Ph/Hz
Maximum Overcurrent Protection (MOP)
60A
Minimum Circuit Amps (MCA)
59.5A
Fan
As follows
Type x Quantity
Axial-flow
Air Flow Volume
5738CFM
Fan Motor Power Output
750+750W
Compressor
As follows
Compressor Type x Quantity
Inverter Scroll
Compressor Refrigerant Oil Type
FV68H
Compressor Refrigerant Oil Charge Volume
5+1.1L/Gal
Refrigerant Piping
As follows
Connection Pipe
High Pressure Gas(mm/inch)Φ15.9/ 5/8
Low Pressure Gas Pipe(mm/inch)
Low Pressure Gas Pipe(mm/inch)Φ19.05/ 3/4
Liquid(mm/inch)
Φ9.52/3/8
Max. Equivalent Connection Pipe Length
165/541 3/8m/ft
Refrigerant Charge
11.6/409.2kg/oz
Refrigerant
R410A

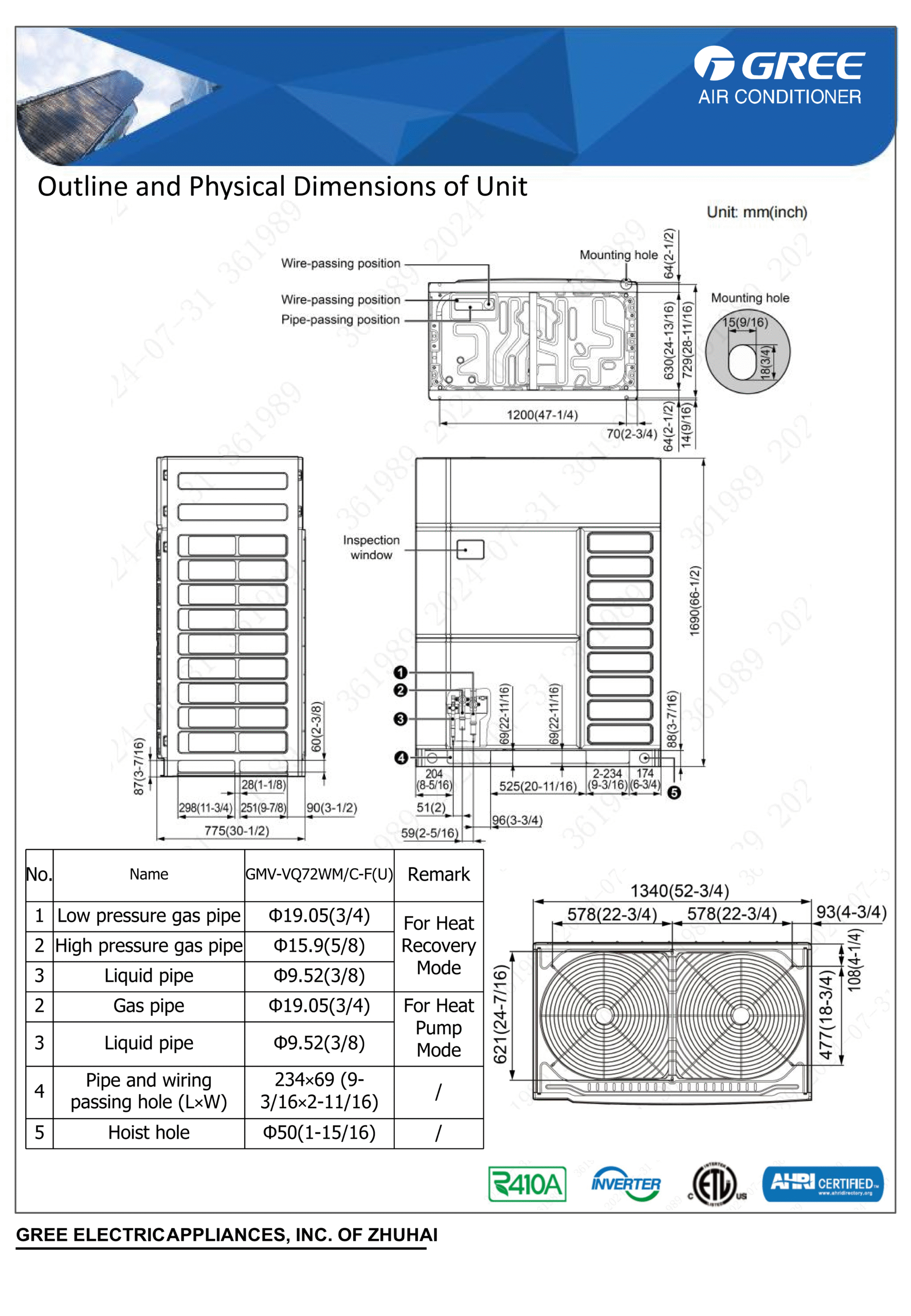

Dimensions (H×W×D)
1690×1340×775 66-1/2×52-3/4×30-1/2mm/inch
Net Weight
340/750kg/lbs
Indoor Unit
13Max Connectable Quantity
Certification
AHRI/ETL/NEEP
Condenser Fin Color
Golden
