Midea Four Way Cassette Fan Coil Unit air Conditioner

Product Features

• Midea HVAC Building Technologies Heat Pump for small to large buildings
• Fan coil units Four-Way Cassette
• Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
• (255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
• various other applications
• Why Choose Us
• 1.Experience
• Over 50-years Experience in Air
• Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
• 2.Professional design
• We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
• scheme.
• 3.Professional selectoion
• According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
• 4.Providing One-Stop Solution of HVAC System
• We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
• 5.Technical Support
• We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
• 6.After-sales service
• We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
• Features
• ---4-way air supply panel as standard, new 360°air supply panel is optional.
• ---Fresh air intake, also supply to side room.
• ---Built-in PCB and drain pump with pump head-750mm.
• ---Remote controller with LED display is standard, wired controller is optional.
• ---Safety grill for safety maintenance.
• ---Optional extended drainage pan for protecting your ceiling better.
• ---Compatible with 0-10V control function.
• ---Available for 2/4 pipe system
• ---EAH is optional (for 2-Pipe 4-Way Cassette)
• 1.Stylish Panel with Large Airflow Outlet

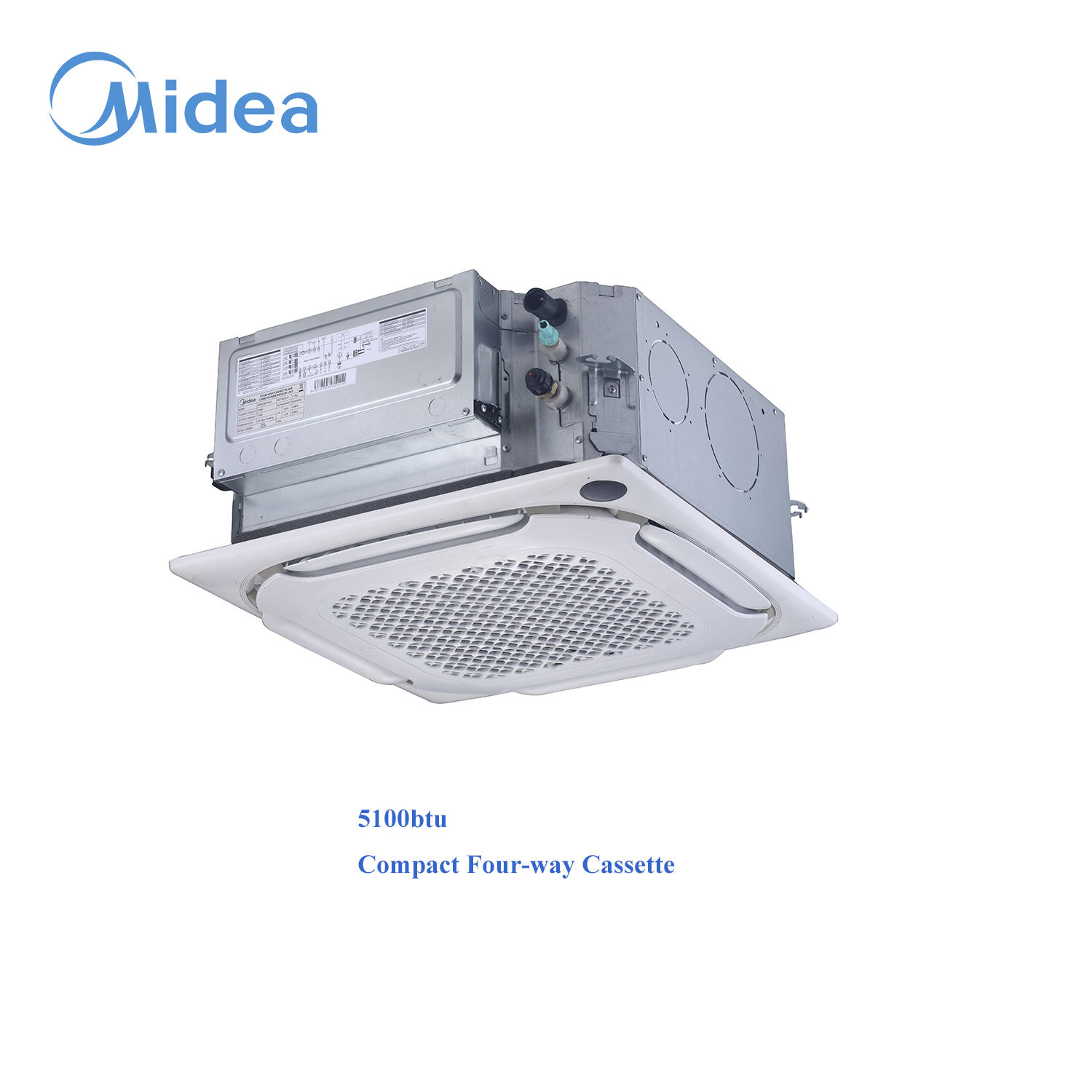

• ---4-way air supply panel is standard for 4-way cassette. 360° air supply panel is standard for compact 4-way cassette.
• 2.NEW 360° panel
• ---New design, round air flow path ensures uniform air flow and temperature distribution.
• Individual louver control
• ---The Individual louver control can control the motors
• separately, making it possible to control all four louvers
• independently.
• 3.Various Selections
• ---Versions for normal size.
• The height of models 600 to 750 is just 230mm whilst models 850 to 1500 is 300mm, making the Four-way Cassette ideal for standard ceilings.
• 4.Auto restart
• In the event of a sudden power failure during operation,unit
• restarts automatically and the unit will operate based on the
• previous setting (operating mode, temperature setting and
• fan speed).
• High-lift Drain Pump
• ---A drain pump with a 750mm pump head is fitted as standard, simplifying installation of the drain piping.

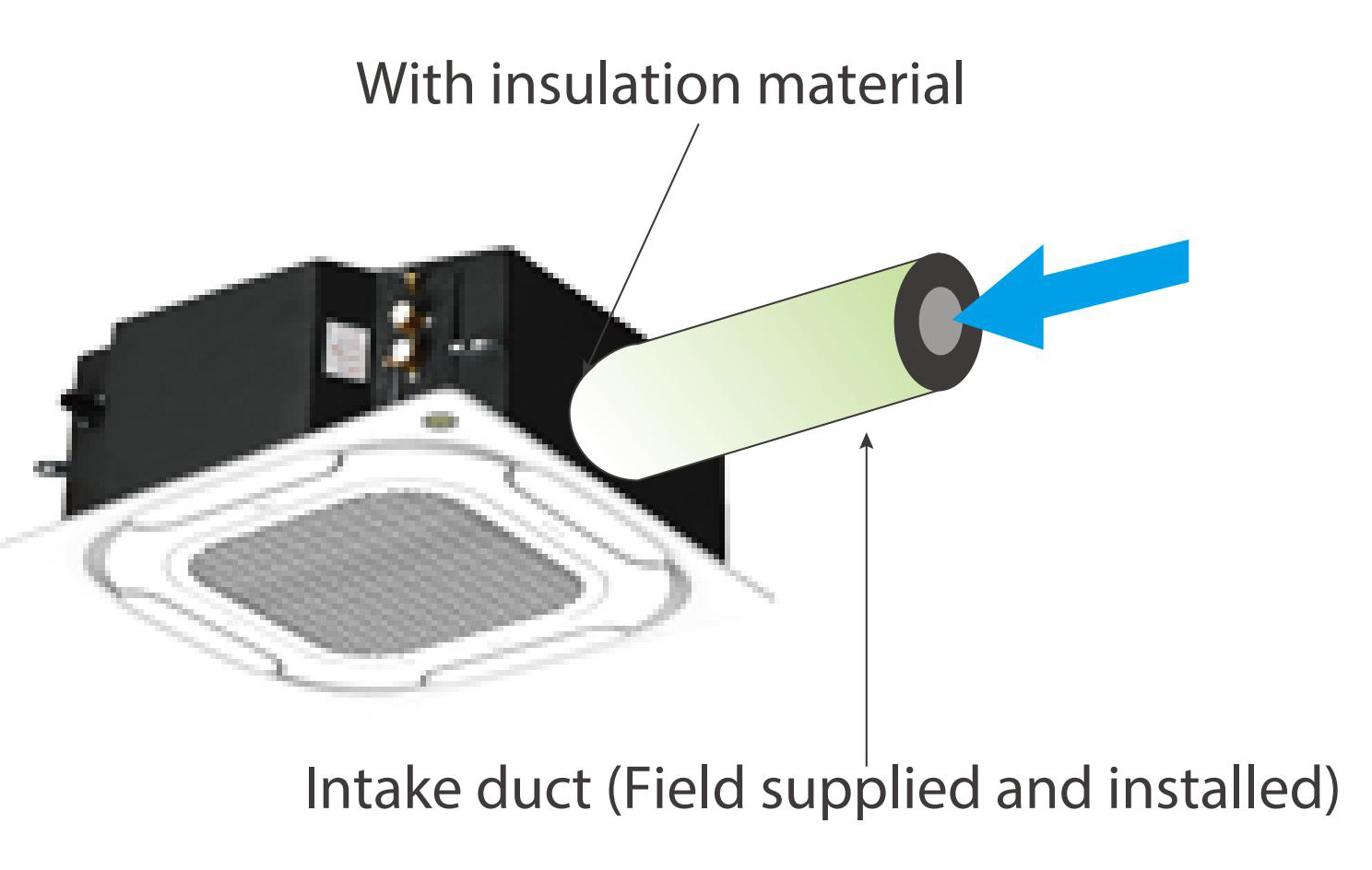

• 5.Fresh Air Intake
• ---A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a
• separate ventilation system.
• ---Knock out hole is available int the unit.
• ---Accessories such as booster fan must be supplied on field and installed.

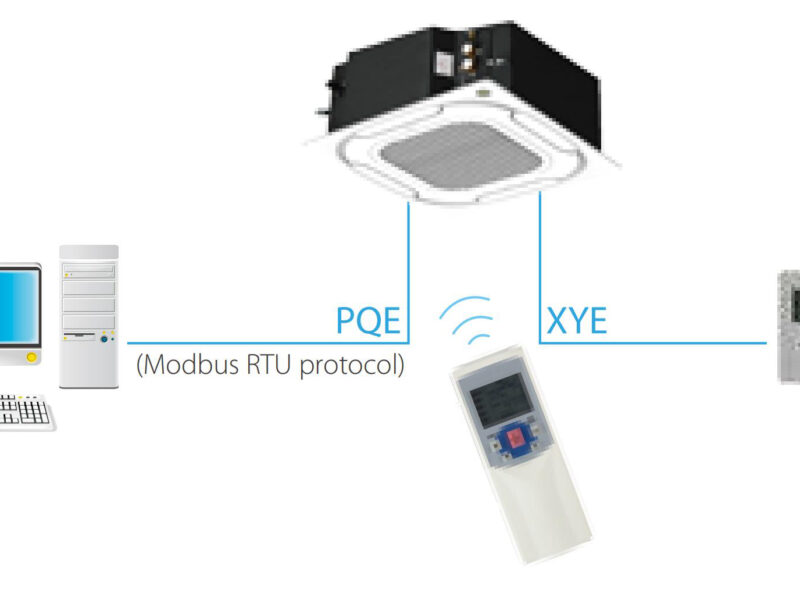

• 6.Control solutions
• ---The fan coil units can be connected to Midea central control lers through the customized XYE port, also can be connected to Modbus gateway through the customized PQE port with Modbus RTU protocol.
• 7.Certifications and Authorization
• IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
