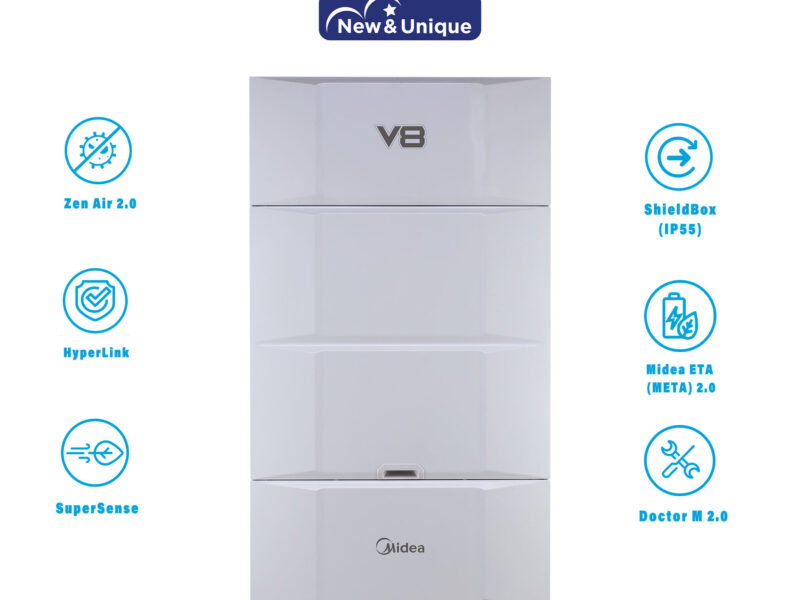

Midea V8 ShieldBox 28kW Condensing Unit Media Ac Inverter air Conditioner Split air Condition China for Schools

Product Features

• Product spotlights
• Supplier highlights:This supplier offers project design, collaborates with Fortune 500 companies, provides full customization, and has local after-sales service and showrooms. They mainly sell to Ethiopia, Nigeria, and Rwanda.
• Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
• Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
• Information needed by Midea Group’s management system before prepare quotation details for you.
• 1.Project Drawing, building layout, equipment BOQ.
• 2.Project name: building name or building type, such as xxx office project, residential house project etc.
• 3.Expected shipping date of this project.
• 4.Project type: tender or self-owned.
• The V8 Series VRF uses a variety of algorithms and self-learning technology to monitor the operation of the equipment through operating parame-ters and timely maintenance, so that the equipment always runs in opti-mal condition throughout its life cycle
• HyperLink
• Midea original communication bus chip greatly simplifies installation and saves installation cost
• HyperLink communication technology supports any wiring pattern rather than just daisy chain
• connection, reducing the installation cost and the possibility of incorrect connection. It has
• stronger anti-interference ability, achieving communication distance up to 2000m.
• Arbitrary Topology Communication
• In addition to the traditional daisy chain connection, the communication wire supports tree connection, star connection, ringconnection and so on. The wring is flexible, which greatly reduces the installation cost and has no possibility of wrong connection on site.
• Super Anti-interference Capability
• Special waveform restoration technology enhances anti-interference performance for more stable communication
• Flexible Power Supply for Indoor Units
• HyerLink 's unique communication method allows the indoor units to be powered not only by a uniform power supply, but also by individual and zone power supplies, making it particularly suitable for each shop in a large complex building, which can independently power on and off its own indoor units.
• ShieldBox
• IP55 fully enclosed electric control box provides all-round protection for internal electronic
• components, greatly improving system RELIABILITY
• Fully enclosed electronic components are isolated from the external environment to protect against
• corrosion, sand, humidity, snowstorm and other harsh conditions, and prevent small animals and
• insects from entering the chamber. To provide comprehensive protection for internal electronic
• devices, improve the overall environmental tolerance.
• All Microchannel Refrigerant Cooling
• All electronic components including inverter module, filter module and power module are cooled by specially designed microchannel
• refrigerant to ensure that the electronic components work in the best temperature range.
• PTC Heater
• The unique PTC heater, with precise temperature control sensor, can still ensure that the temperature inside the chamber is within the normal operating temperature range of electronic devices even in the low-temperature environment of -30°C.
• 5 High Precision Temperature Sensors
• 5 high precision temperature sensors are used to accurately monitor the operation state of electronic control under various conditions to ensure that the internal temperature of the chamber is always kept within a stable range.
• SuperSense
• The status of the refrigerant is known anywhere throughout the process, ensuring high RELIABILITY
• and COMFORT.
• Up to 19 sensors are distributed throughout the refrigerant system, and the status of the
• refrigerant is known anywhere throughout the process, ensuring stable operation. At the same
• time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be
• created in the event of a physical sensor failure, so that the system does not shut down in the
• event of a sensor failure, ensuring comfort.
• Complete Sensors
• The V8 Series VRF has the industry's most comprehensive range of 19 condition sensors with built-in data models for compressors,
• heat exchangers, throttling components and more. By analyzing sensor data in real time, it can sense the status of the refrigerant
• anywhere in the system.
• Refrigerant Amount Diagnosis*
• Thanks to the complete sensors, the refrigerant running state is clearly visible, so as to accurately diagnose the amount of refrigerant.
• Virtual Sensor Backup
• In the event of a sensor failure, other sensors can automatically simulate a virtual backup sensor, so that the VRF system can continue to operate without stopping.
• Doctor M 2.0
• Further upgraded DOCTOR M technology to maximize EASY SERVICE
• Based on a cloud-based platform of big data and artificial intelligence, the V8 Series VRF can monitor the operation status ofeach unit in real time, predict system faults in advance and provide data analysis for system maintenance. Intelligent Bluetooth module and special Bluetooth after-sales kit can further simplify maintenance and improve maintenance efficiency.
• Intelligent Maintenance Tool
• With intelligent Bluetooth module or special Bluetooth after-sales kit, the data of the outdoor unit can be directly read and written on your smart phone without the needs of connecting PC or opening cabinet.
• Real-time Monitoring of Operating Parameters
• The V8 Series VRF synchronizes and stores all the unit parameters to the cloud through the data cloud gateway, including the running status, locking status, dirty blocking rate, all spot inspection parameters and so on. Users can query real-time and historical parameters on computers, tablets and mobile phones at any time.
• Cloud-based Big Data Analytics
• Midea V8 Series VRF transmits the system operation data to the cloud in real time through the data cloud gateway, and timely reminds the system of abnormal conditions through big data analysis, helping users to proactively avoid the risk of failure that has not yet occurred and minimize hidden problems
• Packing Details:
• 1.VRF Air Conditioning Outdoor Unit: Midea standard pallet package with film covered.
• 2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package.
• 3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet.
• Leading time: Generally 25-60 days( peak-time and off-time).
